QSX, QCX

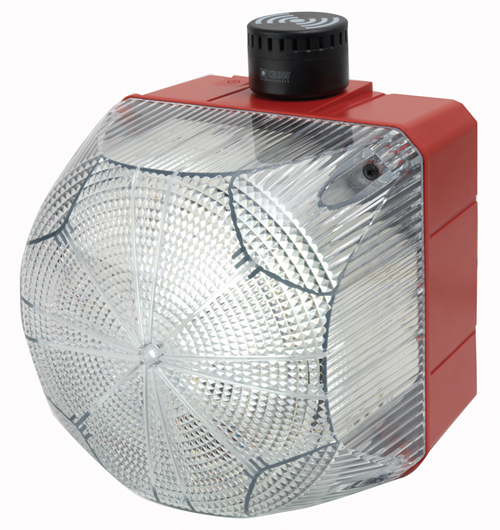

Beacons Q with Buzzer Indicator

Comprehensive range of visual-audible signalling products with dominant beacon and additional buzzer indicator
For most different visual-audible signalling requirements in the industry, process control, fire/gas alarm, marine, etc.
Buzzer indicators with up-to-date piezo technique
2 tones – steady/pulsing tone (size 1 and 2)
3 tones – steady/pulsing/wobble tone (size 3 and 4)
Versatile installation and mounting options
Light and tone separately switchable
Beacon options
1.) In most up-to-date LED technique
long lifetime, low current consumption, vibration proof:
- LED steady/flashing beacons (size 1-4) and
- LED multi strobe beacons
3 strobe patterns - double/6 times/multi strobe
- externally switchable (size 3-4)
2.) In conventional xenon strobe technique
classic signalling with good signalling effect:
- xenon strobe beacons with 5 J and 10 J strobe energy (size 1-2)
Fit for plc applications (leakage, inrush current)

The Candela values refer to colour clear (white) at 230 V operating voltage and a measuring angle of 1° in axial direction.
