Products / Auer-Signal / Audible Signalling Equipment / Electronic Sound Generators / EHL

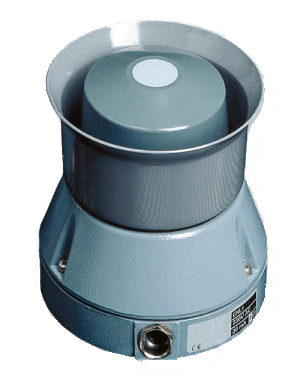

EHL

Electronic Sound Generators

loud electronic sounders - up to 110 dB
robust, high-quality design
housing made of aluminium die cast, epoxy powder coated

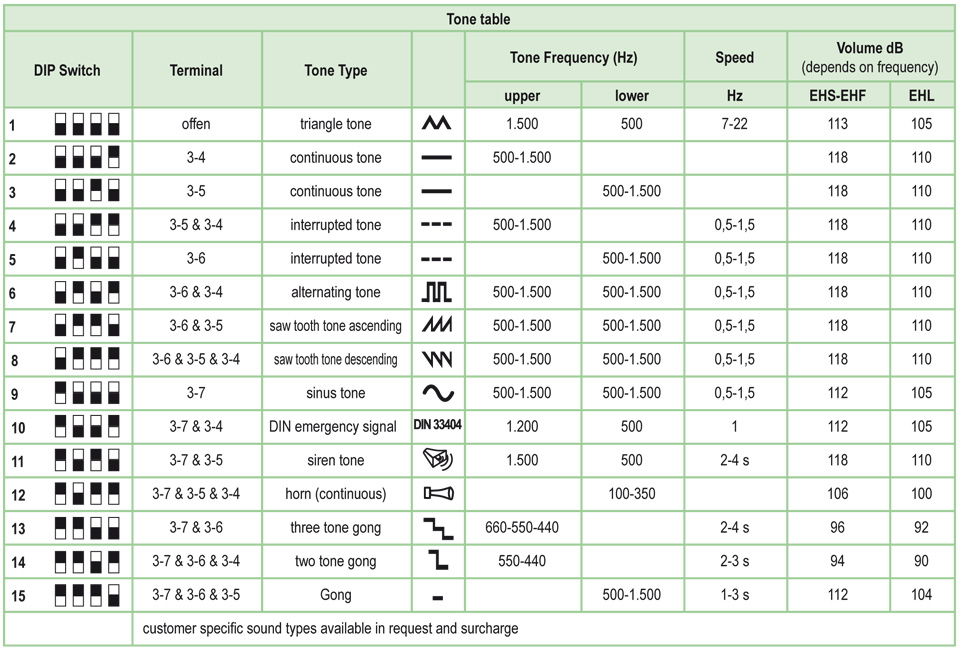

15 different tone types, additionally lower/upper frequency
and speed individually adjustable by potentiometer -
for versatile applications

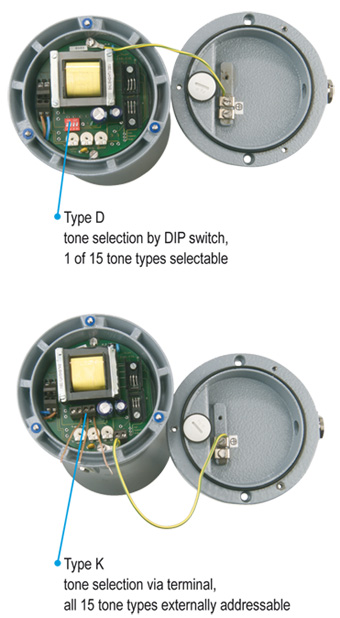

tone types selection by
DIP switch (Type D - EHL-D) - 1 of 15 tone types pre-selectable
Terminal (Type K - EHL-K) - all 15 tone types externally addressable
short loudspeaker
special models with particular sound tables, volume control,
seawater resistant housings, models for low temperature
applications etc. upon inquiry

EHL

Instruction sheet
